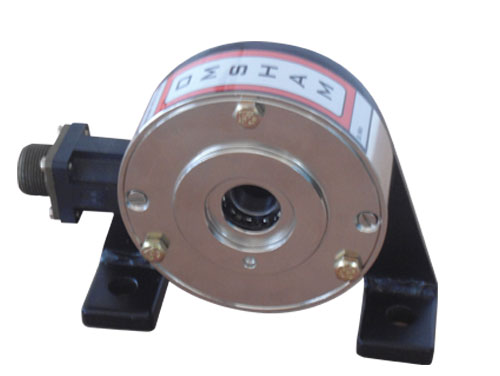

Load Cells
OMSHAM load cells are strain gauge based, full-bridge sensors. The load cells are designed to suite requirement of Printing & Packaging Industry, to sense the tension on the moving web. The rugged construction, ensures trouble free operation.
Electrical Specifications :
| Strain gauge Resistance |
350 ohms (Nominal) |
| Excitation voltage |
10 V DC |
| Ambient Temperature |
50 degree C |
| Overload limit |
160 % of rated load |
| Output |
10 mV |
| Sensitivity |
1mV/V |
| Accuracy |
Better than +/- 0.5% of rated output |
| Accessories |
8 meter connecting cable with one end terminated with connector
to suite load cell |
Dimensions :

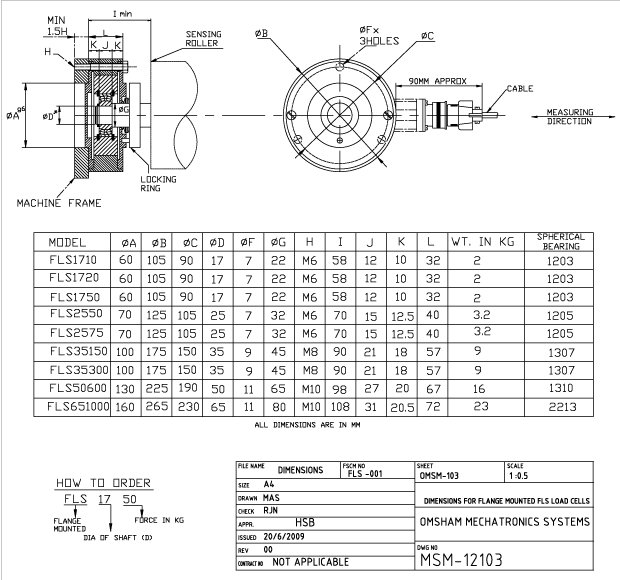

Flange Mounted FLS Load Cells

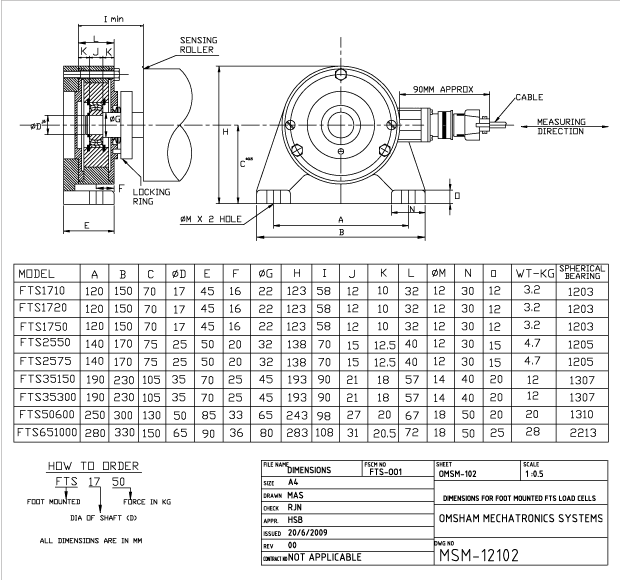

Foot Mounted FLS Load Cells
Digital Tension Indicator :
A panel mounted type (cut out of 92 x 92 mm) 3 ½ digit digital indicator is offered to use with load cells. The indictor works on 230V, 50 Hz single phase supply. Indicator gives output of 4-20mA and 0-10V DC proportional to the tension reading.
Sensing Roller :
If needed idler roller to use with load can be supplied as per user specifications. |
Very good accuracy and repeatability
